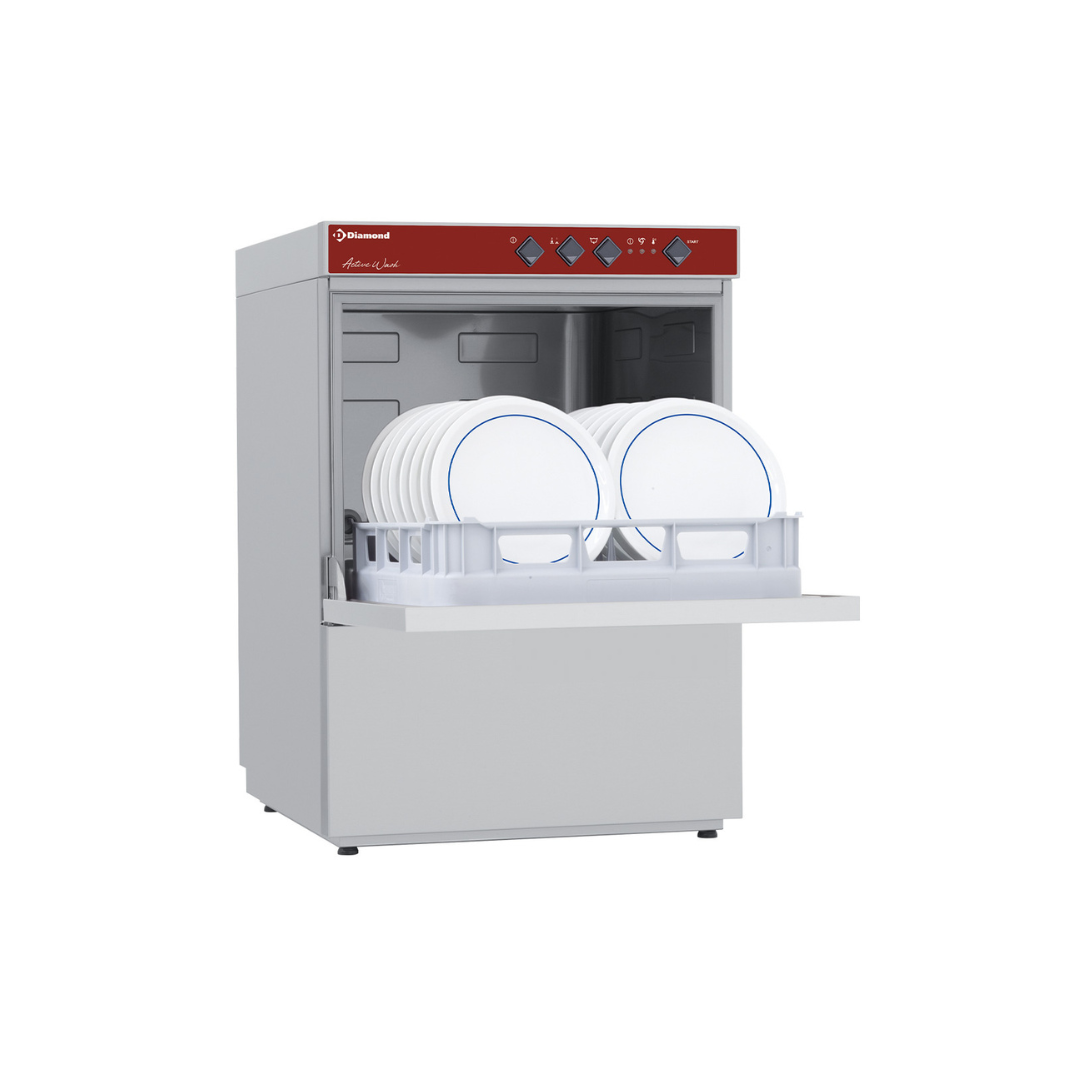

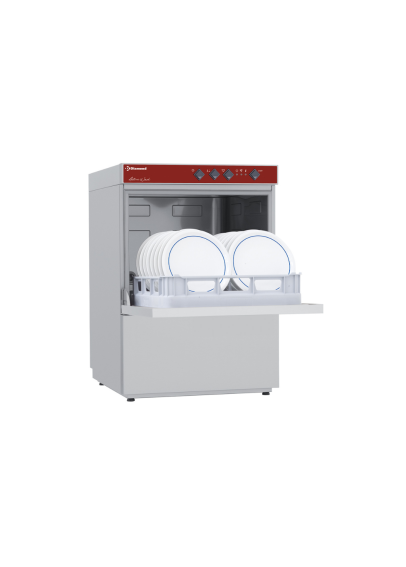

Dishwasher basket 500x500 mm.
Item code: D86/6
  • (W x D x H) mm600 x 630 x 830
  • kW 6.5
  • Voltage 400-230/3N 50Hz
  • gross Weight (Kg)64
  • Volume (m³)0.48
Have questions about this product?

Send us an inquiry and we'll get back to you with an offer!

Product details

  • Realisation "double walled".
  • Charging height dishes diam. 390mm (glass height 355mm)
  • From 60 till 24 baskets/hour, cycles 60'' - 150 '' and continious.
  • Washing arm and rinsing (upper and lower) rotating (lower in stainless steel).
  • Self cleaning sprinklers.
  • Double wall door, "stamped", "removable" waterproof seal.
  • Removable control panel. Automatic filling of the tank.
  • Stamped basket runners, no roughness and no limestone scale.
  • Check valve. Hot water rinse, stainless steel boiler (6 Lit., 6 kW).
  • Washing pump in 230V/1N 50Hz.
  • Micro switch, when the door opens.
  • Safety thermostat.
  • Manufactured in stainless steel AISI 304.
  • Delivered with: 2 baskets, 1 goblet.

The +

  • Fully "pressed" tank (15 Lit., 2,1 kW).
  • Stamped basket runners, no roughness and no limestone scale.
  • "Integrated" tank's filter in "cast" stainless steel.
  • "Peristaltic" dispenser of rinse product supplied as standard.
  • On request: "peristaltic" dosing kit of liquid detergent and drain pump kit
  • "Patented" pump filter allowing to conserve the washing water longer and at good temperature.
  • High output washing pump which guarantees high energy savings.
  • CSD digital control panel (soft touch).
  • EED energy saving.
  • TCD Device which permits to always rinse at 85°C.
  • DRD accelerated preheating phase.
  • DID automatic diagnostic in case of problems.
  • ADD display of boiler and tank temperature (HACCP conform)
  • CID door with automatic closure (Soft Contact).
  • NB: machines guaranteed for "osmosis" water supply.

ADVANTAGE - SAVE THE PLANET :
State-of-the-art technologies, energy-saving, energy-saving technologies, water and detergent, thanks to a more contained tank and its "patented" filter to keep the washing water at a good temperature , as well as a high efficiency wash pump (double flux).
