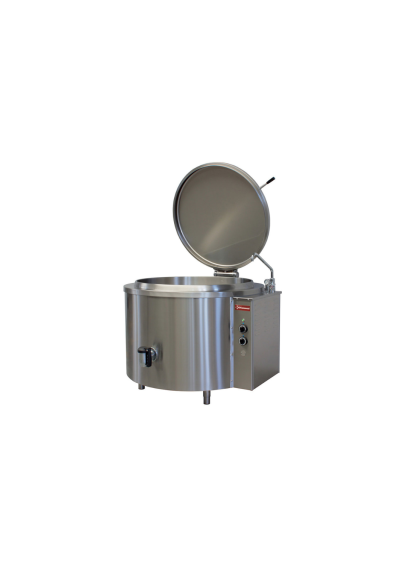

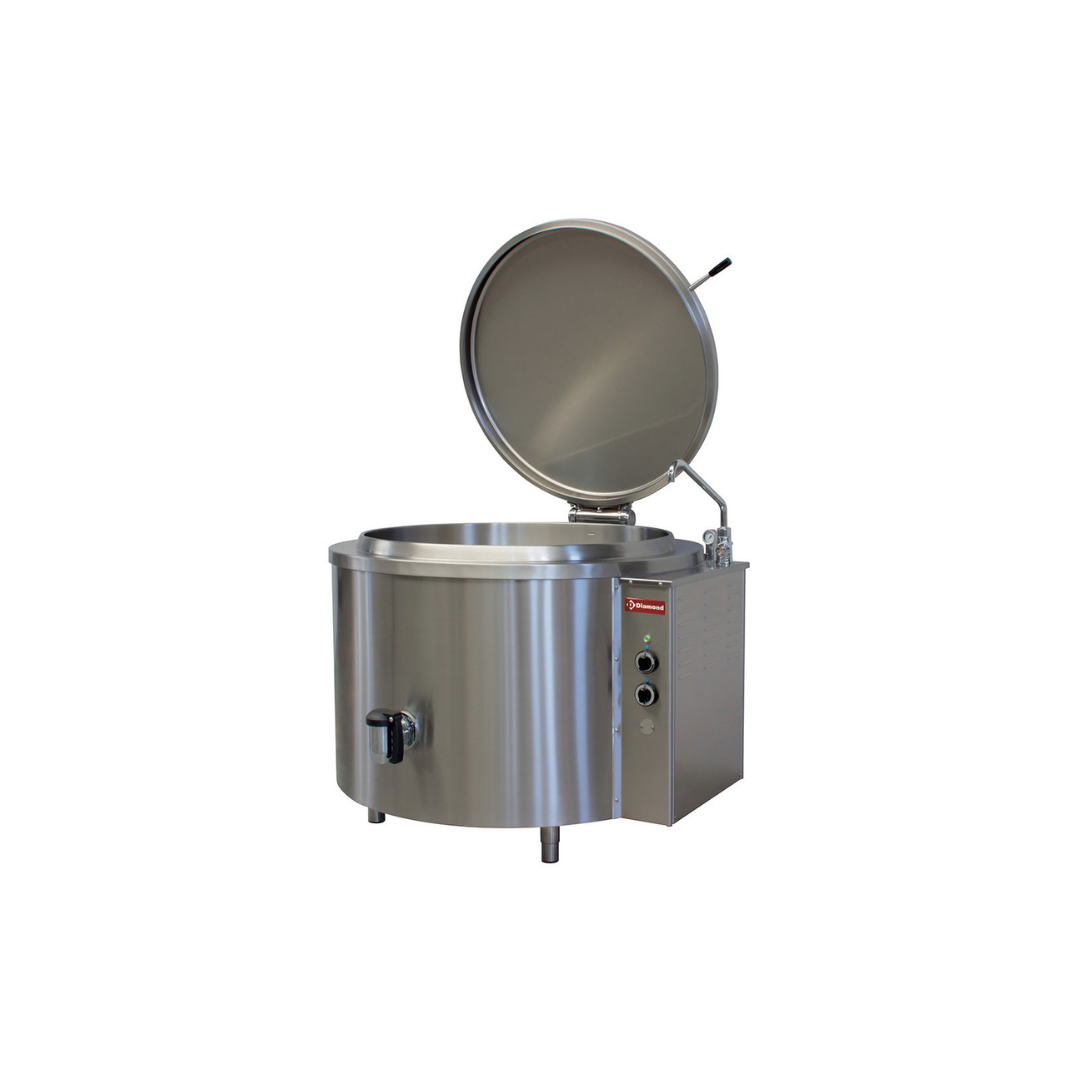

Electric boiling pan 100 liters, indirect heating
Item code: EMM/100I
  • (W x D x H) mm850 x 850 x 900
  • kW12
  • Voltage400/3N 50-60Hz
  • gross Weight (Kg)155
  • Volume (m³)1.6
Have questions about this product?

Send us an inquiry and we'll get back to you with an offer!

Product details

  • Tank diameter 600 mm, depth 420 mm.
  • "Deep-drawn" tank, bottom made of polished AISI 316 stainless steel (20/10 mm thick) wall made of 304 stainless steel (20/10 mm thick). Indirect heating, double jacket made of 304 stainless steel (15/10 mm thick).
  • Made of AISI 304 stainless steel, adjustable stainless steel feet. Covering: made of AISI 304 stainless steel (10/10 mm thick). Work surface: made of AISI 304 stainless steel (15/10 mm thick).
  • "Deep-drawn" tank wall made of stainless steel 304, bottom made of polished AISI 316 steel, resistant to salt corrosion and wear, equipped with a removable strainer to protect the drain valve. Water tap for filling the tank, 2" drain valve.
  • "Deep-drawn" cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
  • Indirect heating, double jacket tank made of 304 stainless steel, filling by the safety group and control valves of minimum/maximum level of the double jacket. Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
  • Electric heating by INCOLOY resistors immersed in the double envelope, power regulation by means of an energy regulator.
  • Safety thermostat, preventing water direction operation in the double jacket, as well as an operating pressure switch...
  • Working temperature up to 100°C.
