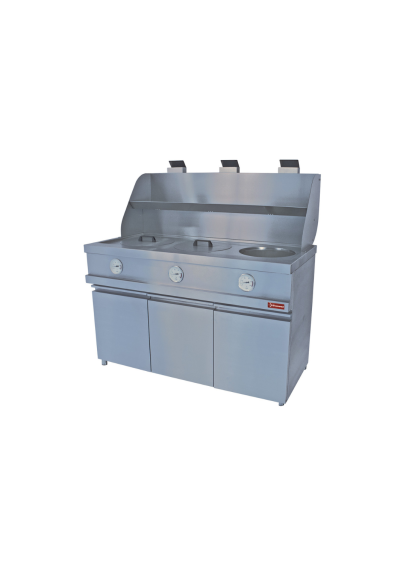

Gas fryer HEAVY DUTY, 3 round basins, mechanic
Item code: MIKA/3-MC
  • (W x D x H) mm1445 x 870 x 930/1507
  • kcal/h (gas)41280
  • gross Weight (Kg)230
  • Volume (m³)1.75
Have questions about this product?

Send us an inquiry and we'll get back to you with an offer!

Product details

  • Production per tank: 25kg/h pre-cooking, 50kg/h cooking.
  • 3 tank, 13liters, Ø 360mm (3x 16,16 kW).
  • 3 swing doors.
  • Supplied with: 1 stainless steel lid per tank.
  • Welded 20/10th thick top.
  • Lower drain tap for each tank and removable drain (or filtration) tray with removable spout (easy and safe to use).
  • Upper tray for pre-cooked food, with perforated bottom for draining.
  • Double-walled insulated hinged doors.
  • Heated by a very high-efficiency cast-iron circular burner with insulated combustion chamber.
  • Chimney (one for each tank) for evacuation of combustion gases.
  • "SIT" type thermostatic valve with thermocouple safety device and piezo ignition (no more electrical connections!).
  • Analogue temperature display on the front panel for each tank.
  • Construction in stainless steel AISI 441.
  • Complies with the current CE standards.

The +

  • Nothing beats the taste of fresh fries. With our Diamond fryers, you can offer the real traditional recipe!
  • Sturdy construction and innovative design.
  • Round 360mm Ø deep-drawn and crimped steel bowl (30/10ths), 100% watertight and impeccably finished, fitted with a cold zone with bottom strainer.
  • Large ‘JUMO’ analogue thermometer(s) (class 1.5 - IP55) (Ø 100mm).
  • Anti-fire safety thermostat (safety in the event of an empty tank ignition), as well as a standard safety thermostat.
  • Large capacity top tray for storing food after pre-cooking.
